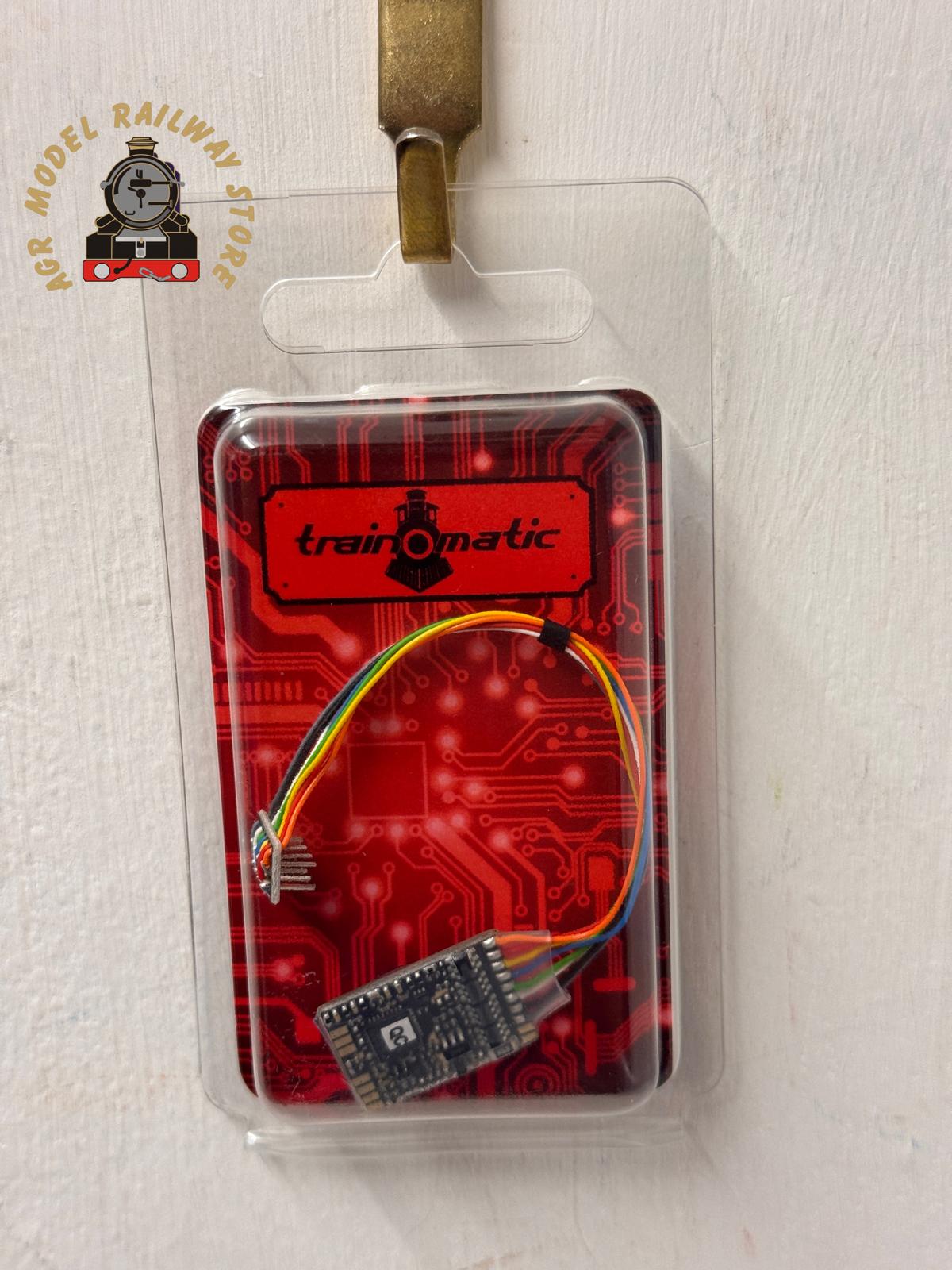

Train-O-Matic 02010218 Lokommander 2 Mini W22 – 8pin Decoder

Train-O-Matic Lokommander 2 Mini W22, 8pin, 10 Function.
Spec of the decoder:-
20.5 x 15 x 3.2 mm
Functions : 10 x AUX (of which 2 SUSI)
SUSI:- Solder pads

Lokommander 2 decoder series

– NMRA compliant DCC locomotive decoder
– Short (1-127) and long (128-9999) configurable addresses
– 14, 28/128 speed steps
– Maximum motor current 1000mA
– Load compensation and BEMF
– Speed set at 3 points (Vmin, Vmid, Vmax) or in tabular form
– Shunting speed
– Constant distance braking, activated on ABC/DC sector or at zero speed
– Reduced speed drive on ABC Slow Speed section
– Penduling function (Push-Pull) without or with intermediar stop
– Up to 10 dimmable auxiliary outputs
– Function output maximum 200 mA per output, maximum of all outputs 400mA
-Output Mapping to functions F0, F1-F12
– Short-circuit and over-current protection of motor and auxiliary outputs
– Bidirectional communication RAILCOM
– SUSI? and LocoWire? interface
– Outputs for Smart Power Pack (SPP ?)
– Electromagnetic uncoupler drive capability
– Upgradable software via the programmer, even with the decoder mounted in the locomotive
– Usable in H0, TT and N scale models
– Supply voltage 4-24V
– Ability to set different speeds for forward and reverse
