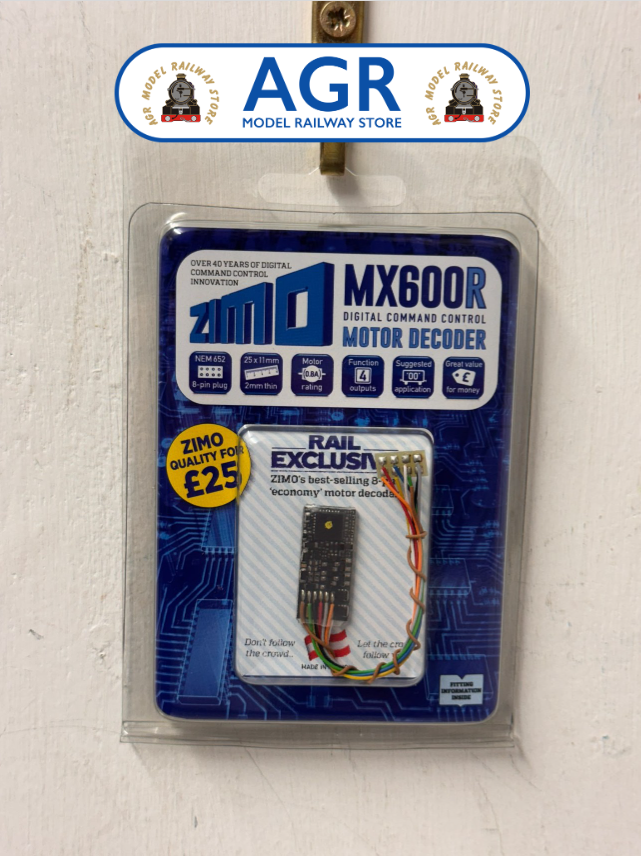

Zimo MX600R Wired DCC Decoder

Zimo MX600 Wired DCC Decoder

 ZIMO has answered the long-standing call for an economy decoder for the core OO/HO market with the launch of the MX600 family. This has been achieved by focusing on what the modeller needs the most from a basic decoder and omitting superfluous features. Advanced circuitry design has also allowed for a compact and economic single-sided layout, only 2mm in height.

 •          MX600 (Wires), MX600R (8-pin), MX600P12 (PluX12)

•          Single-sided ‘ultra thin’ design 25 x 11 x 2mm

•          DCC, DC (Analogue), RailCom equipped

•          4 Function outputs (FOf, FOr, FO1, FO2)

•          0.8 Amp (1.5 Amp peak) motor rating

 ZIMO features as standard (all decoders)

•          Automatic motor regulation and optimization

•          High frequency ‘silent drive’ back-EMF sampling for all motors inc. coreless

•          3 & 28-step programmable speed curves

•          Thermal cut-outs and overload protection

•          Numerous lighting control (special effects) options

•          Signal and distance-controlled stopping

•          ZIMO software update capability via track

•          3-year ‘repair or replace’ manufacturing warranty
